Concrete Pumping Hoses

Concrete pumping hoses tube is made of rubber, and reinforced layer in the middle . It can bear high pressure when concrete pouring. The concrete pumping hoses can work at extreme temperature from -50°C to 100°C. The concrete hoses apply for Putzmeister, Schwing, Zoomlion, Sany, Cifa, Sermac, KCP, Junjin, Everdigm truck mounted pumping equipment & shotcrete trailer etc. It is important delivery parts for concrete pouring. In our stock, we provide one stop service for concrete pipeline system, please visit this page for learning more information.

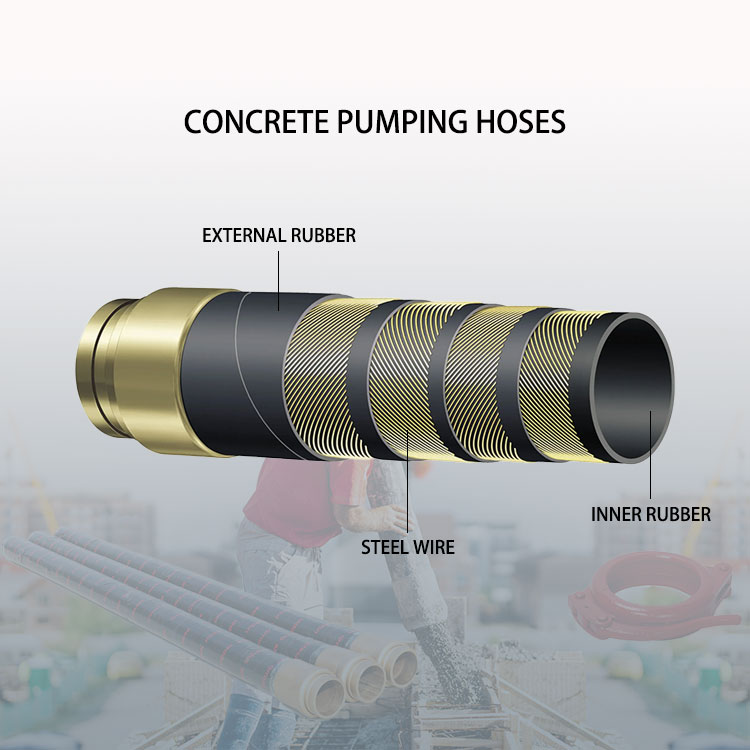

The concrete pumping rubber hoses tube have 3 structure layers.

  • Inner rubber: Synthetic rubber, alkali resistance, aging resistance.
  • Reinforcement: Enhancement is made of wire steel layer or fabric reinforcement, and withstand high burst pressure.
  • External rubber: SBR Rubber. With high wear resistance, aging resistance, heat resistance.





Concrete hoses rubber technical

Handling strength of rubber Pure rubber vulcanizate tensile strengthTensile strength of filled 50 parts carbon black vulcanizateTear strength of vulcanizate filled with 50 parts of carbon black
0.5 Mpa1.4-3.0 Mpa17-28 Mpa40-60 KN/M



SBR rubber have wear resistance, heat resistance, oil resistance and chemical resistance.



Materials

Concrete pumping hoses have steel wire hose, fabric reinforcement concrete pump hose. Choose concrete pumping hoses according to different application engineering.

Steel wire concrete pump hose

The middle enhancement layer of concrete pump wire hose can be 2 layers, 4 layers. Steel wire hose has good comprehensive performance, and the steel rubber hose used for concrete pouring in engineering construction.


Fabric reinforcement concrete pump hose

Fabric reinforcement concrete pump hose have 2 layers, 4 layers, 6 layers, 8 layers as middle enhancement. It have 55Bar and 85Bar high pressure hoses. The more fabric layers, the more pressure the concrete pumping hose can withstand.





Supplying Range

LengthSizeLayersConnection
3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 20m etc.2'', 2.5'', 3'', 3.5'', 4'', 4.5'', 5'', 6'' etc.2 layers, 4 layers.SK, HD, ZX, MF.



The tail ferrule is #20 steel with galvanized. It can be suit for SK end, and also offered HD end.

  • Standard SK148mm, apply for multiple brands concrete pump and countries.
  • HD157mm flange. Mostly used in USA, MEXICO, CANADA.
  • When using steel rubber hose, do not allow small bend radius.
  • If the inner rubber and the flange at the outlet is obviously worn, please replace it immediately to avoid danger.
  • It is forbidden to connect the pipe tube to the end hose, because the strength of the hose is not strong enough, and the hose may be broken when concrete pouring.



If you want to learn more size, please click here:  Concrete Pumping Hoses PDF



Concrete pumping hoses series

Rubber hose is the main spare part of concrete pump, mainly used in concrete pouring and shotcrete spraying. According to size and length, it can be divided into concrete pumping end hose (from DN80-DN150) and shotcrete hose (from DN50-DN90). We can supply the end hose 3m ~ 8m, shotcrete hose 5m ~ 20m.







Concrete pumping hoses data sheet



SizeID mm

Thick

mm

OD

mm

WP

Bar

BP

Bar

BR mm

Weight

Kg/m

2''509±0.7568±1.5852402002.6
2.5''6410±0.7585±1.5852402504.3
3''76.212.9±1102±1.5852402706.1
3.5''8913.5±1116±1.5852402908
4''101.614.2±1130±1.75852403009
4.5''11514±1143±28524032010.2
5''12716±1158±28524036012.5
6''15018±1168±28524057014.85





Concrete Pumping Hoses Feature

  • Has good oil resistance, heat resistance, aging resistance and wear resistance.
  • High wear resistance,  concrete pumping hose with high bearing pressure and superior pulse performance.
  • Durability, and the rubber hose has good bending resistance.



Application

The concrete pumping hoses connect with drag pump for pouring, and it also use for end of hose pumping.

  • If the concrete particle size is less than 25mm, the inner 125mm concrete hoses can be used;
  • If the concrete particle size is less than 40mm, the inner 150mm concrete hoses can be used.

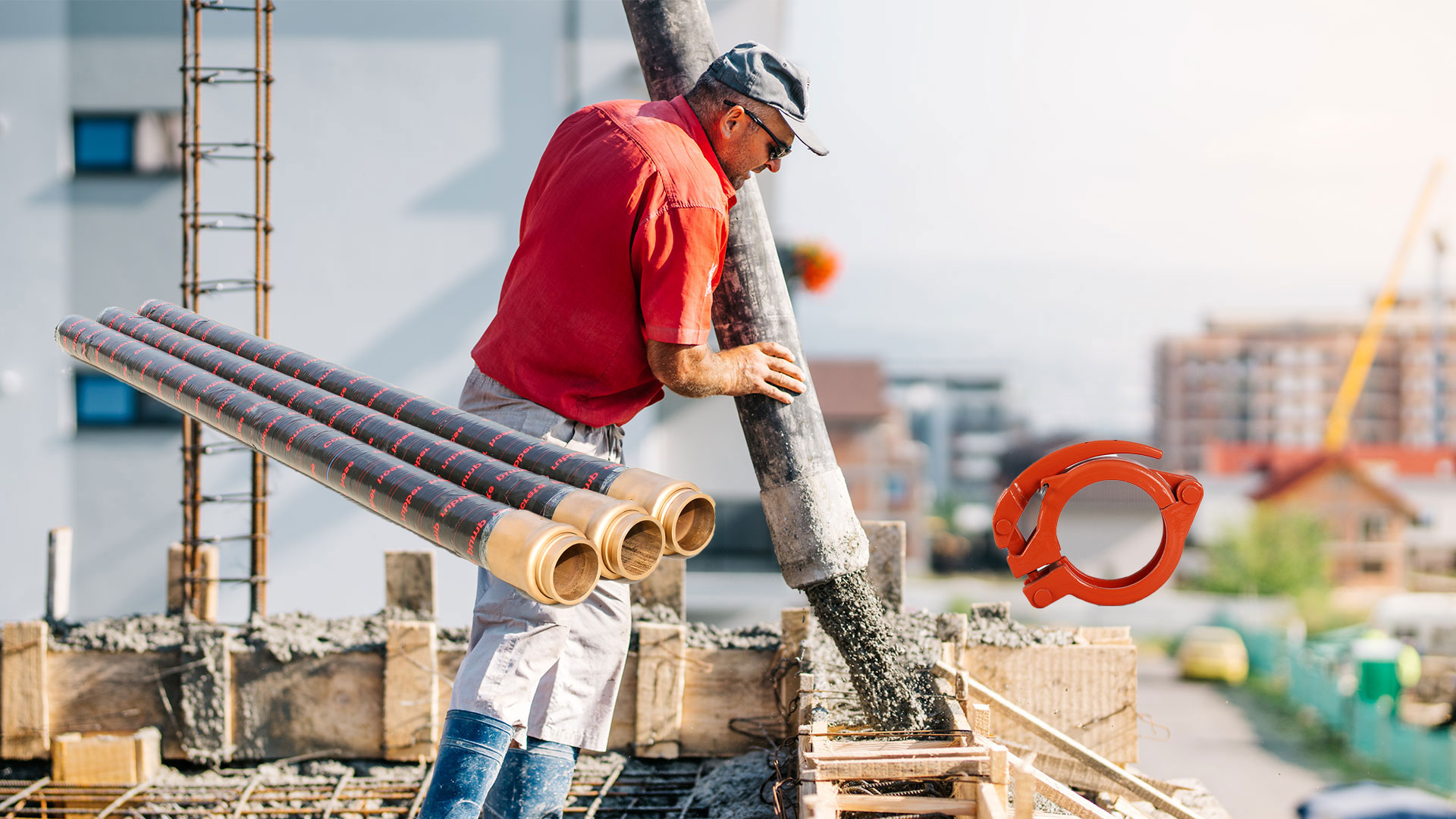

concrete pumping hoses for pouring



Tips for concrete pumping hoses pouring

  • Before concrete pouring, check the pipe clamp first, and make sure the connector is seal.
  • When start or stop concrete pouring, the concrete pumping operator should contact with concrete hoses worker.
  • The boom have more power strength, the end hose worker should not against the boom direction.
  • It shall be used together with vibrator to ensure the concrete pouring is dense.
  • It is best to place the clamp coupling on the concrete pumping hoses skid plate, this will avoid scratching the hose when movement.
